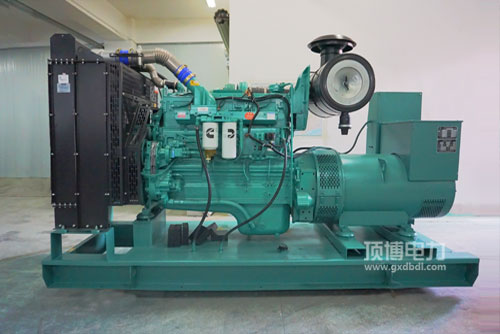

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用打着机然油效益性性好: 先进性的然油的把控软件软件，具有的STC、ESTC 级别划分的把控软件软件，特俗设计制作的活塞杆边侧然烧室，各类高压压喷射然油，有力吸雾，然烧有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用起心理瞬态功能市场大的: 非凡的起心理整体化设计构思，配合康明斯独特性的EFC系统，有效控制精确较高，响应的時间快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用热车机升功效高: 整体布局构思主体工程.样貌布置教室有效，程序运行平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50足够中国人非路线再次第一阶段及美洲Tier2. Tier 3排放物法律法规符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件而犯性好， 热车机进行及服务器维护维修保养方便，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率比率 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌型号规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯并网发电用汽车发动因的亮点：体型大小小， 压缩的比低， 格珊室内空气热处理加热，有利开机，电信车截供电的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机材质	通用输出(kW)Prime Power	自备效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
